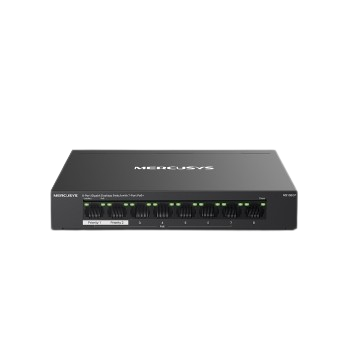

Mercusys MS108GP 8-Port PoE Gigabit Desktop Switch

Mercusys MS108GP 8-Port PoE Gigabit Desktop Switch

The Mercusys MS108GP Gigabit Desktop switch has 8 Gigabit Ethernet ports, 7 of which can handle Power over Ethernet (PoE+). It complies with 802.3 af/at regulations, so powered devices can get power and connectivity without interruption. With a combined power budget of 65W, the PoE Ports (Ports 1–7) are appropriate for a range of PoE-enabled devices, including VoIP phones and IP cameras. The switch ensures effective data transfer by operating at half-duplex data rates of 10/100/1000 Mbps and full-duplex data rates of 20/200/2000 Mbps. The IEEE 802.3x Flow Control improves data dependability, while the 15 KB Jumbo Frame size maximizes the delivery of data packets. The switch effectively handles device addresses thanks to its 8K Mac Address Table. Through the use of Extend Mode, the Mercusys MS108GP 8-Port PoE Gigabit Desktop Switch extends the PoE transmission range to 250 meters. An external power source provides a consistent 53.5V/1.31A output. With a minimum power usage of 5.07W when no powered device (PD) is attached and a maximum power consumption of 77.33W when a 65W PD is connected, energy efficiency is visible. The switch's maximum heat dissipation of 17.238 BTH/h when no PD is attached and 262.922 BTH/h when a 65W PD is connected round out its features, which makes the Mercusys MS108GP a great option for companies looking for a potent and energy-efficient PoE Gigabit switch solution.
