Mercusys MS110P 10-Port 10/100Mbps PoE Desktop Switch

Mercusys MS110P 10-Port 10/100Mbps PoE Desktop Switch

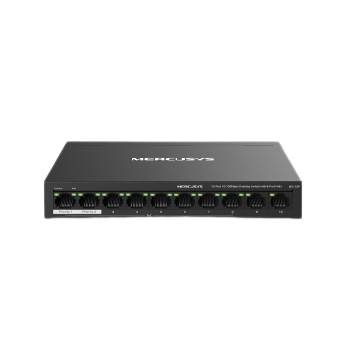

The Mercusys MS110P Desktop Switch features 10 RJ45 ports, 8 of which support Power over Ethernet (PoE+) functionality. It facilitates both data transfer and power delivery to compatible devices while adhering to the 802.3 af/at standards. With a combined power budget of 65 watts, the PoE Ports (Ports 1 to 8) provide effective power distribution for networked devices including wireless access points and IP cameras. The switch supports data rates of 10/100 Mbps in half-duplex and 20/200 Mbps in full-duplex, and data reliability is enhanced with IEEE 802.3x Flow Control. The MS110P supports up to 2K entries in the Mac Address Table and a Jumbo Frame size of 2 KB, ensuring effective address management and smooth data transfer. When the isolation mode is activated, the MS110P offers two x uplink ports. There are two connections: one for the Internet and another for the NVR. The external power source adds to the stability of the switch by providing an output of 53.5V/1.31A. The power consumption of the switch is dependent on the network switch connected to it; when all PoE ports are utilized, it can reach a maximum of 77.52W. With a low consumption of 10.064 BTH/h when no PD (Powered Device) is connected, the Mercusys MS110P also exhibits clear energy efficiency, making it a great option for companies looking for a dependable and energy-efficient PoE switch solution.
